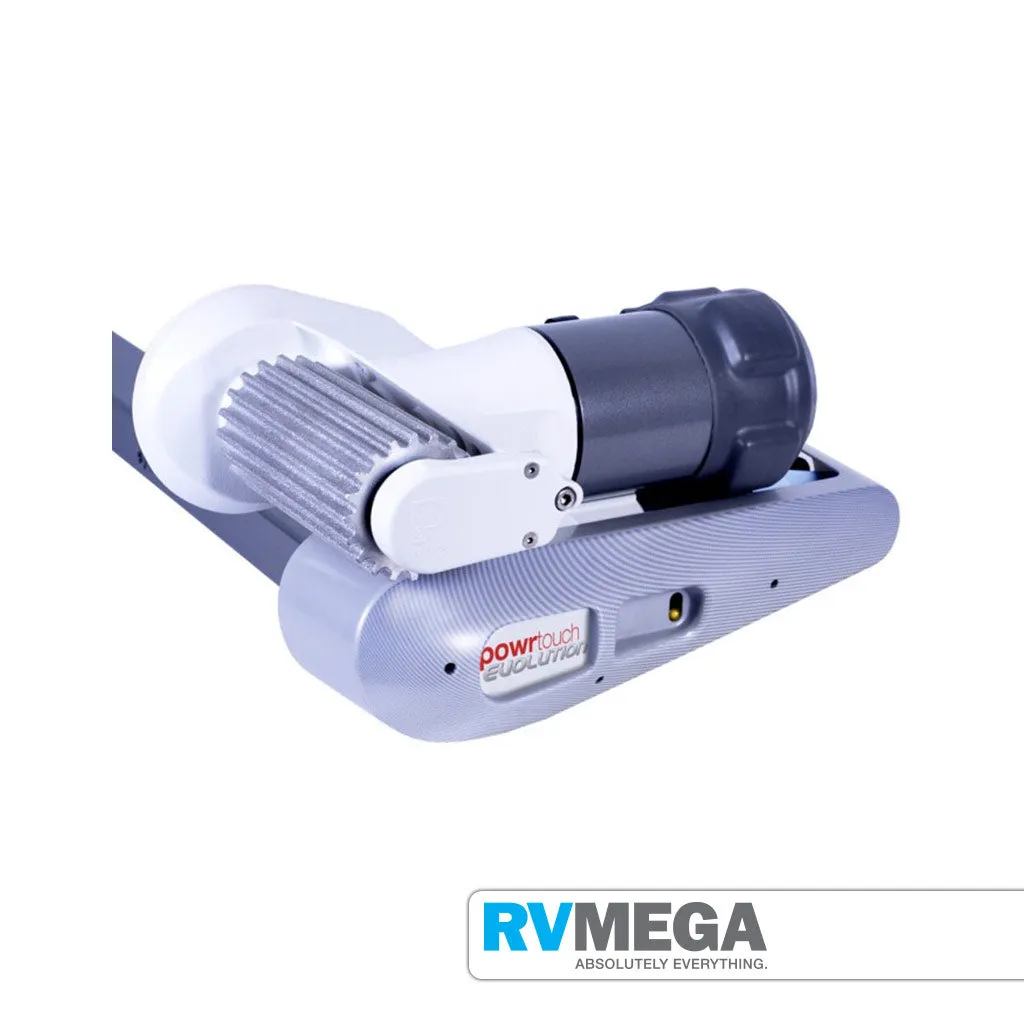

The Powrtouch Evolution is a next generation caravan mover and has been designed and developed in the UK. The all new caravan mover system makes extensive use of lightweight alloy materials and an ultra efficient gearbox, this combined with a new state of the art 'four-pole' electric drive motor giving it significantly increased power to the drive rollers, making it the lightest and most powerful caravan mover available.
The innovative dynamic roller location mechanism moves the rollers smoothly and directly on to the tyres, improving grip and driving power by eliminating roller slippage. This innovative new movement design also significantly improves the performance and reliability of automatic operation (Powractuation) of the drive rollers to the tyres.
Powrtouch Evolution All Wheel Drive: (drives all four wheels of a twin axle caravan)
With the addition of a further two driving wheels this feature makes the Powrtouch Evolution 'All Wheel Drive' the ultimate caravan mover system for the highest possible manoeuvrability of a twin axle caravan: this is a MUST for those tight turns in limited space.
- Our Powrtouch Evolution for twin axle caravans will fit all standard Alko & BPW chassis with or without shock absorbers, including smaller caravans & trailer tents
- Automatic roller engagement controlled from the handset for a simple & easy life! Eliminating the need to manually engage the rollers
- 5 stage planetary gearbox on roller engagement for maximum power & grip
- Tool supplied to manually retract rollers in case of flat battery
- High strength lightweight and compact construction using aircraft & marine grade aluminium alloy materials
- High power 4 pole double wound motor delivering maximum power to the rollers
- 20 Point lightweight aluminium rollers for optimum grip
- DMC technology allows the ultimate precision manoeuvring in tight spaces
- Precise & accurate soft start Powr drive control giving smooth mm by mm manoeuvring
- Highly efficient gearbox design for efficient operation & battery life
- All metal high strength sealed gearbox. Multifunction handset and base unit warning indication system
- 360 degree directional precision control with in motion directional adjustment
- Comprehensive directional performance, all with 4 speed settings
- Designed & Manufactured to the highest standards including ISO 9001:2008 & TUV Standards. NCC Compliant
- Tested for 2800kgs on a 1 in 4 slope (levelling ramps)
Specifications
- Roller Engagement: Automatic
- Operating Voltage: 12 Volt DC
- Average Current Consumption: 40 A
- Max Current Consumption: 160 A
- Speed: 28 cm per sec.
- Weight: Approx. 70kg
- Permissible Overall Weight on 25% gradiant: 2800 kg
- Recommended Power Source (Caravan leisure battery): 12V 100Ah
